Technical Specifications:

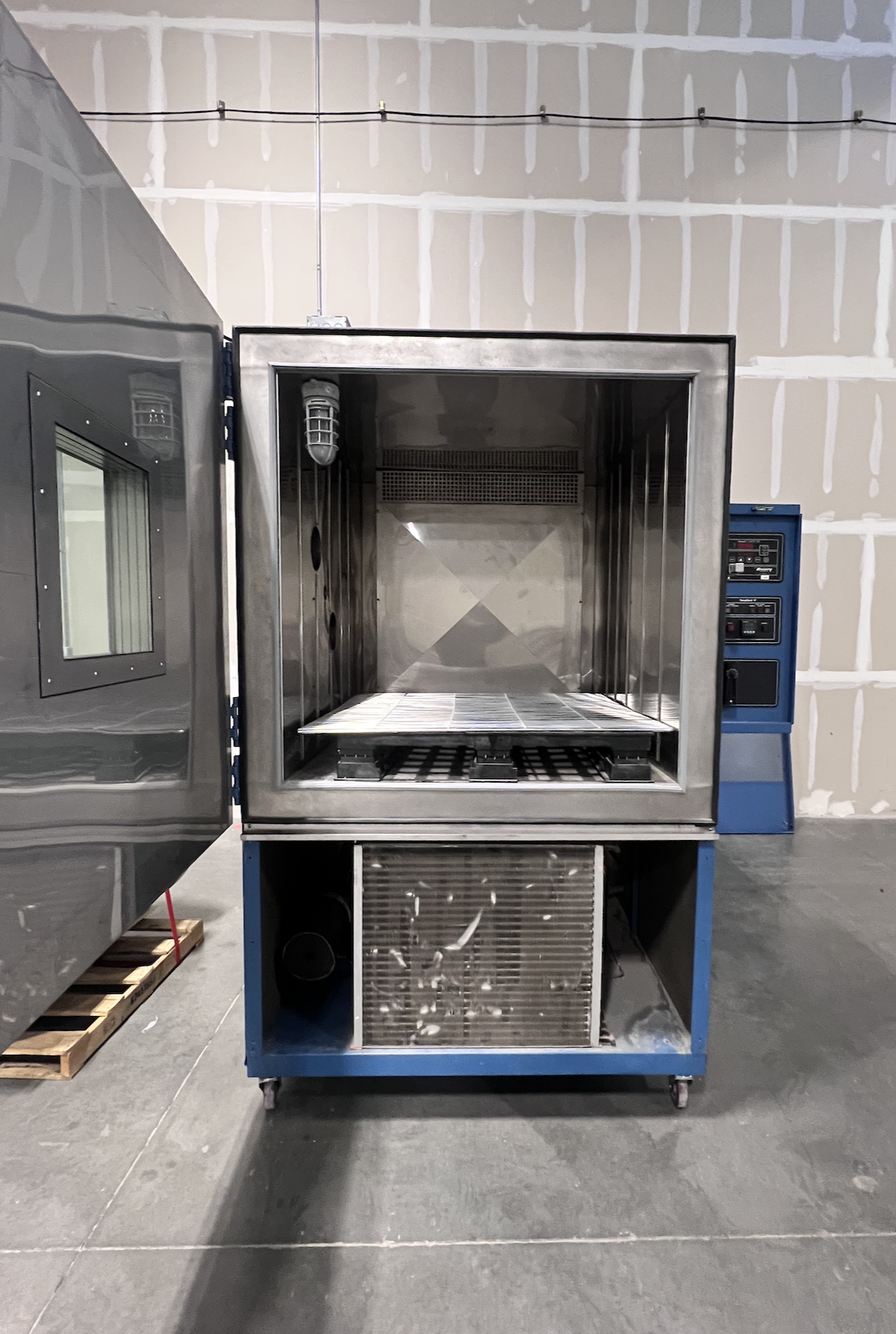

• Tenney T64RC with VersaTenn III controller

• Chamber certified by Tenney Thermal Product Solutions (TPS)

• Internal dimensions: 1,190 x 1,190 mm base, 1,190 mm height

• Temperature range: -70 ºC up to 200 ºC

• Average ramp rates

• Ramp up (25 ºC to 200 ºC): ~3.5 ºC/min

• Ramp down (25 ºC to -65 ºC): ~1.5 ºC/min

• Average full cycle time (25º C > 200º C > -65º C > 25 ºC): ~4.5 hours

• Three accessory ports on the side of the chamber are available for UUT monitoring and control cabling. After cables are routed, the ports are sealed with malleable plugs.

Technical Specifications:

• IMV i240

• 800 x 800 mm slip table

• 2,600 Hz frequency range

• 24 kN Sine & Random rated force

• 48 kN Shock rated force

• 1,200 m/s² maximum acceleration

• 2.2 m/s maximum velocity

• 400 kg horizontal/vertical maximum load
